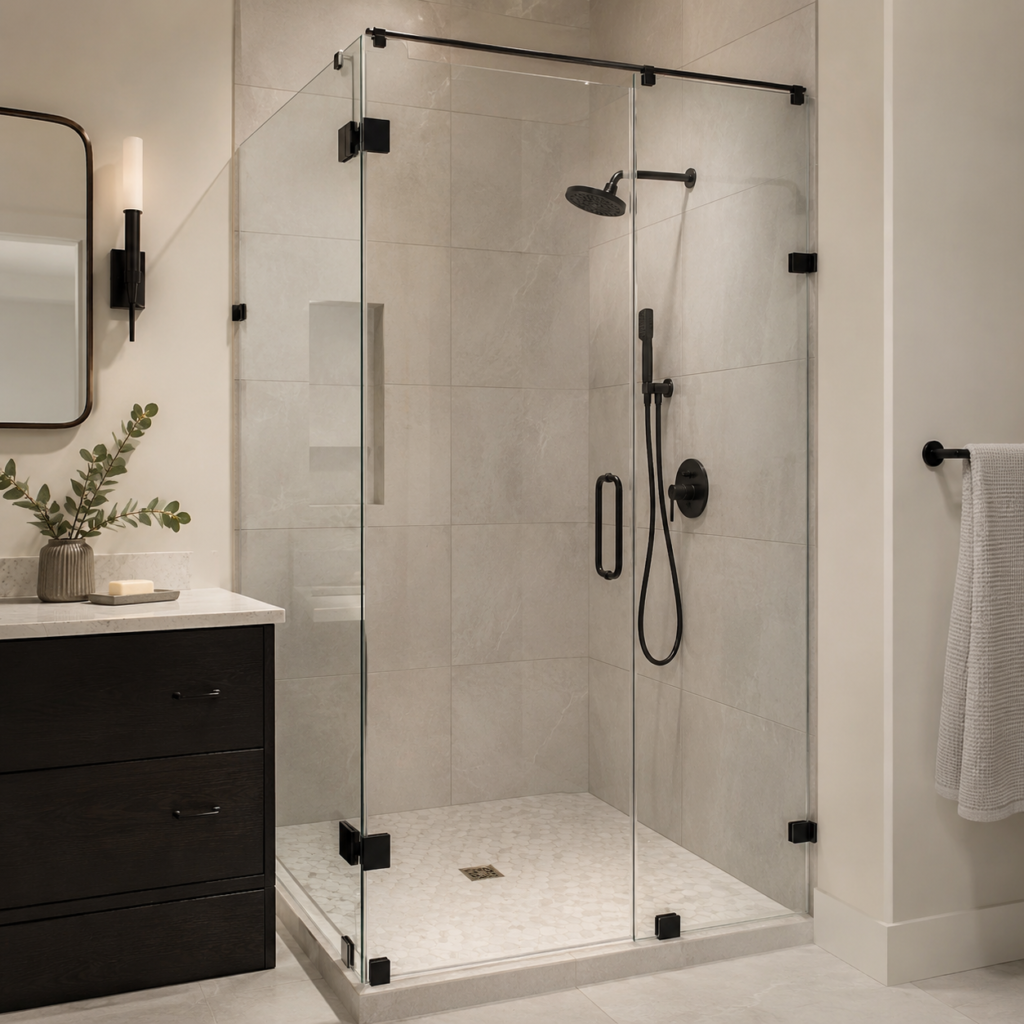

A frameless shower enclosure relies on an engineering paradox: achieving maximum structural stability with minimal visible hardware. Without an aluminum frame to distribute the load, the entire physical weight, opening torque, and waterproofing responsibility are transferred directly to a few square inches of metal clamping onto glass.
In high-end hotel, resort, and luxury apartment projects, hardware failure does not happen immediately. It manifests six months later: the 10mm glass leaf sags, the magnetic seals fail to meet, the matte black finish blisters, and water leaks onto premium bathroom flooring.
To prevent these costly maintenance issues, shower hardware must be specified as an integrated, high-performance system.
Metech provides frameless shower door hardware solutions for hotel bathrooms, apartment projects, residential shower enclosures, villas, resorts, gyms, spas, and shower enclosure manufacturers.
Why Frameless Shower Doors Need System-Based Hardware Selection
For frameless shower doors, hardware selection should start from the glass and layout, not from appearance alone.
| Selection Factor | Why It Matters |
|---|---|
| Glass thickness | Determines hinge, clamp, gasket, and seal compatibility |
| Door weight | Determines hinge load capacity |
| Door width and height | Affects stress on hinges and clamps |
| Shower layout | Determines 90°, 135°, or 180° hinge type |
| Wet environment | Affects material and corrosion resistance |
| Water sealing | Affects magnetic seal, bottom seal, and door gap design |
| Finish requirement | Affects bathroom appearance and project consistency |
The key question is not only whether the hinge fits the glass.
The real question is whether the door will stay aligned, close accurately, resist corrosion, and seal properly after long-term use.
Key Requirements for Frameless Shower Door Hardware
1. Glass Weight and Hinge Load Capacity
Hinge selection is a safety issue.
Common frameless shower doors use 6mm, 8mm, 10mm, or 12mm tempered glass, depending on project level and door size. A 10mm tempered glass panel weighs about 25kg per square meter. In many hotel or apartment projects, one shower door can reach 35kg to 40kg.
For this type of door, light-duty hinges are not suitable. A pair of heavy-duty forged brass shower hinges should stably support around 40kg to 45kg of 10mm tempered glass, depending on hinge structure, glass size, and installation conditions.
For project use, hinges should not be selected at their maximum load limit. A proper safety margin helps reduce sagging, loose hinges, and poor door alignment.
2. Material Standard: No Zinc Alloy for Premium Projects
A shower room is a high-humidity environment. Hardware is exposed to water vapor, shampoo, soap, cleaning chemicals, temperature changes, and sometimes coastal air.
For premium frameless shower door projects, zinc alloy should not be used as the baseline material.
| Material | Recommended Use |
|---|---|
| Solid forged brass | Premium shower hinges with high density and stable plating performance |
| SS304 stainless steel | Clamps, handles, stabilizer bars, and general bathroom fittings |
| SS316 stainless steel | Coastal hotels, resorts, humid areas, and higher corrosion-resistance projects |
| Zinc alloy | Not recommended for premium frameless shower door hardware |
For high-end shower hinges, solid forged brass is preferred because of its density, machining stability, and plating performance. For clamps, handles, bars, and accessories, SS304 and SS316 stainless steel are more suitable for long-term wet bathroom use.
3. Corrosion Resistance and Finish Durability
Bathroom hardware must resist moisture and cleaning chemicals, not just look good at installation.
For popular finishes such as matte black, brushed gold, champagne, and gunmetal, surface treatment should be tested carefully. For premium projects, we recommend specifying 96 to 120 hours acid salt spray testing, depending on material, coating type, and project requirements.
This is especially important for:
- hotel bathrooms
- serviced apartments
- coastal resorts
- high-humidity bathrooms
- matte black or brushed gold finishes
- large batch orders requiring color consistency
For project buyers, the purpose of testing is not only to pass a standard. It is to keep hinges, clamps, handles, and stabilizer bars consistent after long-term use.
4. Gaskets and Clamping Force
Small internal parts often decide long-term stability.
A hinge may look solid from the outside, but if the inner gasket is too soft, slippery, or easy to age, the glass may slowly shift after repeated use.
For premium frameless shower door hardware, we recommend 2mm high-friction, anti-aging Neoprene gaskets or special anti-slip rubber liners inside hinges and clamps.
Good gasket design helps improve:
- clamping force
- anti-slip performance
- vibration resistance
- glass protection
- long-term door alignment
This is especially important for 10mm and 12mm glass doors, where the hardware must hold the glass firmly without creating excessive point stress.
5. Self-Closing and Return Accuracy
For shower doors, return accuracy affects both user experience and water sealing.
If the door does not return to the correct position, the magnetic seal may not meet properly, leaving a small gap for water leakage.
For premium self-closing shower hinges, we recommend checking:
| Hinge Function | Recommended Requirement |
|---|---|
| Fatigue test | 100,000 cycles or above |
| Self-closing angle | Self-closing from around 25° |
| Return accuracy | Return to 0° closed position for magnetic seal alignment |
| Spring stability | Maintains closing force after long-term use |
| Seal compatibility | Helps magnetic and bottom seals work properly |
A shower hinge should not only close the door. It should help the door return accurately enough for the magnetic seal and bottom seal to perform as designed.
Water Leakage Control
Water leakage is one of the most common issues in frameless shower enclosures.
In most cases, leakage is not caused by one strip alone. It is the result of door gap, hinge angle, glass size, seal strip selection, floor slope, and installation accuracy working together.
| Leakage Area | Common Cause |
|---|---|
| Door bottom | Wrong bottom seal, excessive gap, poor floor slope |
| Door side | Magnetic strip does not meet properly |
| Hinge side | Door gap or hinge position is not controlled |
| Fixed glass panel | Clamp or wall connection is not stable |
| Closing edge | Incorrect magnetic seal angle or weak return accuracy |

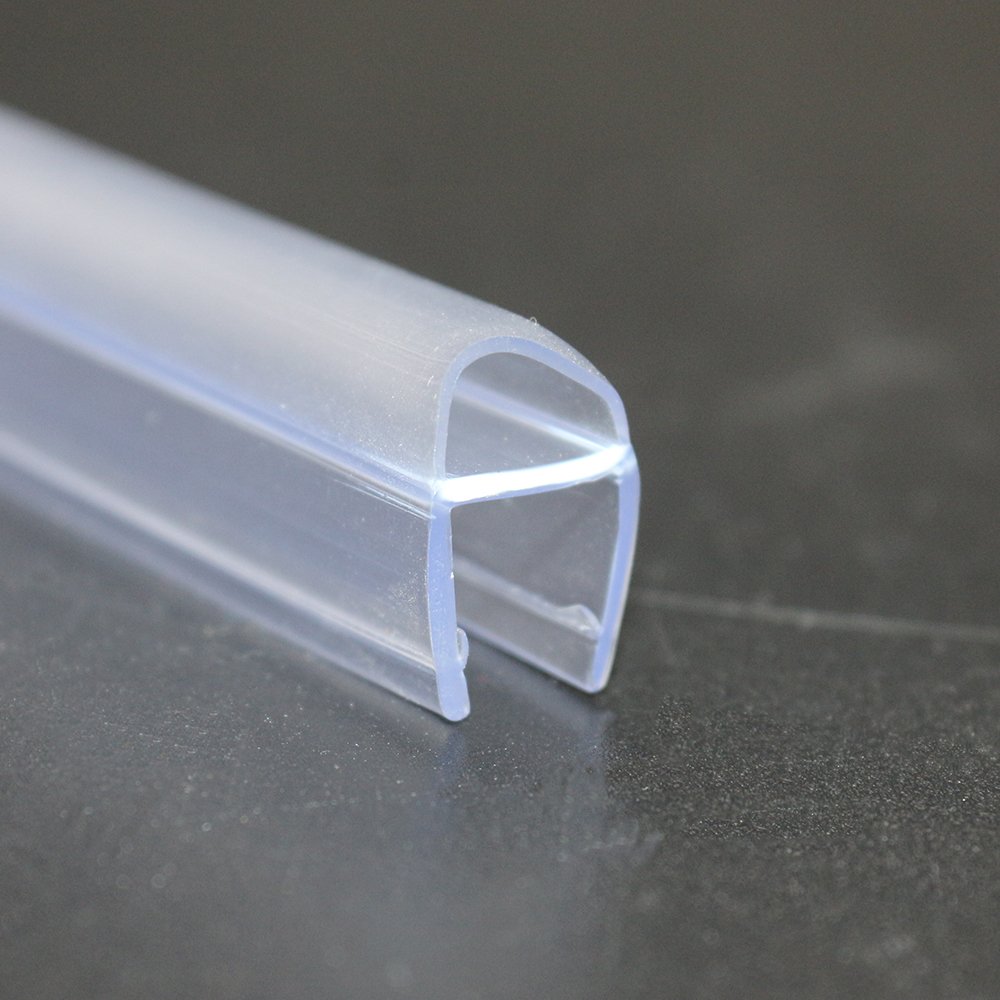

A PVC waterproof strip helps, but it cannot fix a poorly aligned door. Waterproofing must be designed as a system.

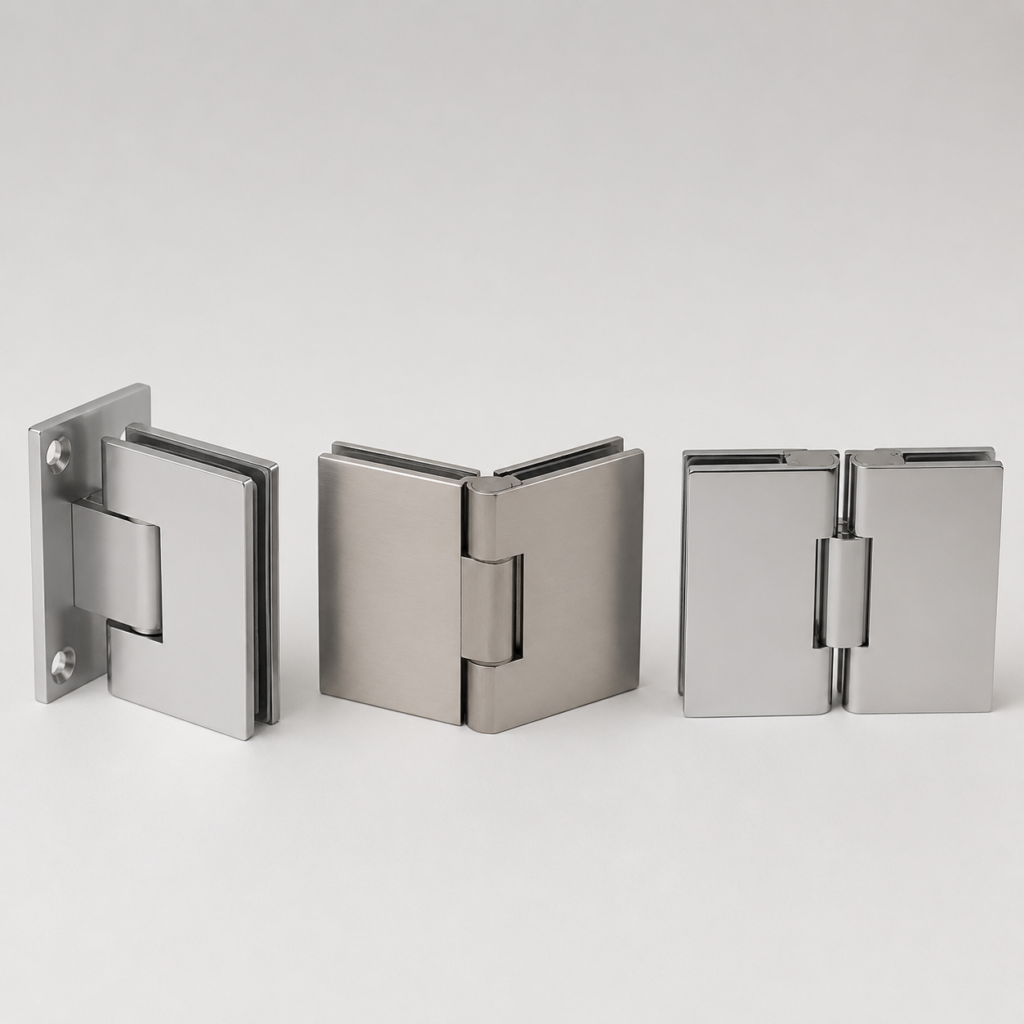

Hinge Angle and Shower Layout
Different shower layouts require different hinge types.
| Hinge Type | Suitable Application |
|---|---|
| 90° wall-to-glass hinge | Door connected to wall |
| 180° glass-to-glass hinge | Door and fixed panel in a straight line |
| 135° glass-to-glass hinge | Diamond or corner shower enclosure |
| Pivot hinge | Special door structures |
| Self-closing hinge | Projects requiring controlled return and seal alignment |
Before ordering, the shower layout, glass thickness, door width, opening direction, and seal design should be confirmed.
A 90° hinge cannot simply replace a 135° hinge. The door angle, closing position, and seal direction are different.

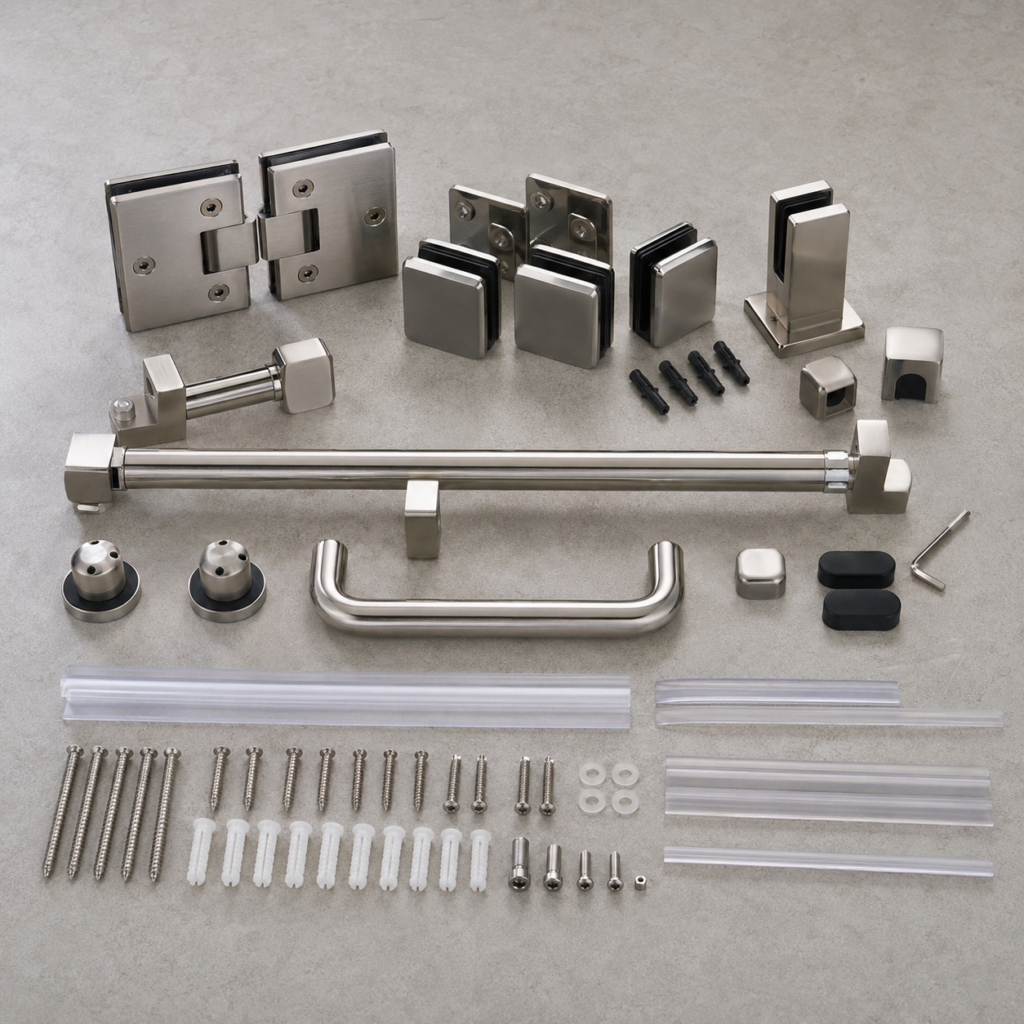

Frameless Shower Hardware Schedule
For premium bathroom projects, generic part descriptions are not enough. Each component should meet clear engineering requirements.
| Component | Engineering Standard for Premium Projects |
|---|---|
| Heavy-duty shower hinge | Solid forged brass construction; 40kg–45kg load capacity per pair for 10mm glass; 0° return position; 100,000-cycle fatigue tested |

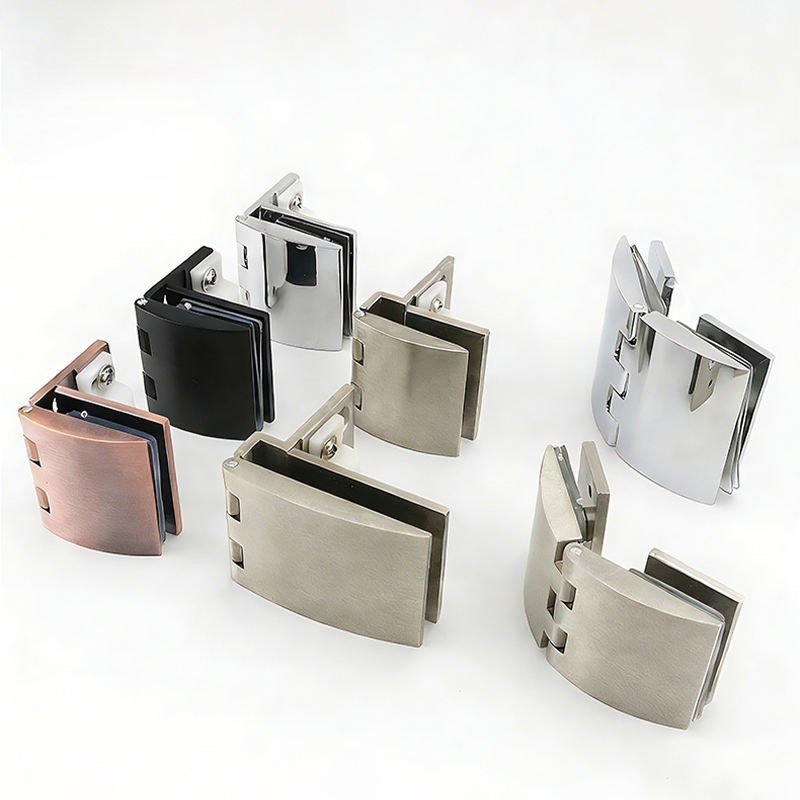

| Glass clamps / U-brackets | Solid forged brass or SS304; 2mm high-friction Neoprene gasket to reduce glass slippage |
| Pull handles / towel bars | Heavy-wall SS304 or SS316 stainless steel for wet bathroom use and cleaning chemical exposure |
| Stabilizer / header bars | SS304 construction; recommended for large fixed panels or 8mm glass to reduce lateral flexing |
| PVC seal / magnetic strips | UV-resistant, anti-yellowing translucent PVC; matched to 8mm, 10mm, or 12mm glass edge |
| Gaskets, screws, and caps | Corrosion-resistant screws, anti-aging gasket material, and matched finish caps for long-term stability |
For premium projects, all visible parts should match in material, finish, glass thickness range, gasket structure, and batch consistency.
How to Select Frameless Shower Door Hardware
Before recommending hardware, we normally confirm:
- glass thickness: 6mm, 8mm, 10mm, or 12mm
- door width and height
- estimated glass door weight
- shower layout: 90°, 135°, or 180°
- wall-to-glass or glass-to-glass installation
- self-closing requirement
- seal strip and waterproof strip design
- bathroom environment: normal, humid, coastal, or hotel project
- finish requirement: chrome, matte black, brushed gold, or custom finish
- OEM logo, packaging, and batch order requirement
For 10mm heavy glass shower doors, hinge load capacity and gasket quality should be checked first. For black or gold finishes, salt spray testing and batch color consistency should be confirmed before mass production.
Common Problems from Wrong Hardware Selection
Wrong hardware selection often causes:
- shower door sagging
- hinge loosening
- magnetic seal misalignment
- water leakage from the bottom gap
- glass clamp shifting
- poor door return accuracy
- corrosion or surface discoloration
- black or gold finish color difference
- replacement parts not matching the original project
- glass edge stress caused by poor gasket design
Most of these issues are easier to prevent before ordering than to fix after installation.
Why Work with Metech
Metech provides one-stop frameless shower door hardware solutions, including shower hinges, glass clamps, handles, towel bars, waterproof strips, magnetic seals, stabilizer bars, wall brackets, gaskets, and related accessories.
For shower enclosure manufacturers, bathroom hardware distributors, hotel contractors, and apartment projects, Metech can support:
- OEM and private label requirements
- custom finish options
- export packaging
- batch consistency
- project-based hardware matching
- long-term repeat order support
Our goal is to help customers build shower door systems that stay aligned, resist corrosion, reduce leakage, and maintain a clean premium bathroom appearance.
Suitable Applications
This frameless shower door hardware solution is suitable for:
- hotel bathrooms
- apartment bathrooms
- residential shower enclosures
- villa bathrooms
- resort bathrooms
- gym and spa shower rooms
- prefabricated bathroom projects
- shower enclosure manufacturers
- bathroom hardware distributors
- renovation and fit-out contractors
Different applications need different hardware levels. Hotel and coastal resort bathrooms usually require stronger corrosion resistance and better finish consistency than standard residential bathrooms.
FAQ
What hardware is needed for a frameless shower door?
A frameless shower door usually needs shower hinges, glass clamps, handle or towel bar, magnetic seal strip, bottom seal, waterproof strip, stabilizer bar, wall brackets, gaskets, screws, and cover caps.
What material is best for premium shower door hinges?
For premium frameless shower doors, solid forged brass is commonly used for heavy-duty shower hinges. SS304 or SS316 stainless steel is suitable for clamps, handles, stabilizer bars, and accessories. Zinc alloy is not recommended for high-end wet bathroom projects.
How much weight should shower hinges support?
A 10mm tempered glass shower door may weigh around 35kg to 40kg depending on size. A pair of heavy-duty forged brass hinges should normally support around 40kg to 45kg with proper installation and safety margin.
Why is self-closing important for frameless shower doors?
Self-closing helps the door return to the correct closed position, allowing magnetic seals and bottom seals to work properly. Premium hinges should support self-closing from around 25° and accurate return to the 0° closed position.
How can frameless shower doors prevent water leakage?
Leakage prevention depends on hinge angle, door gap, glass size, magnetic seal, PVC waterproof strip, bottom seal, floor slope, and installation accuracy. A seal strip alone cannot solve all leakage problems.
Can Metech provide OEM shower door hardware?
Yes. Metech can support OEM and project-based shower door hardware supply, including hinges, clamps, handles, waterproof strips, stabilizer bars, custom finishes, logo requirements, packaging, and batch consistency.
